Product Overview

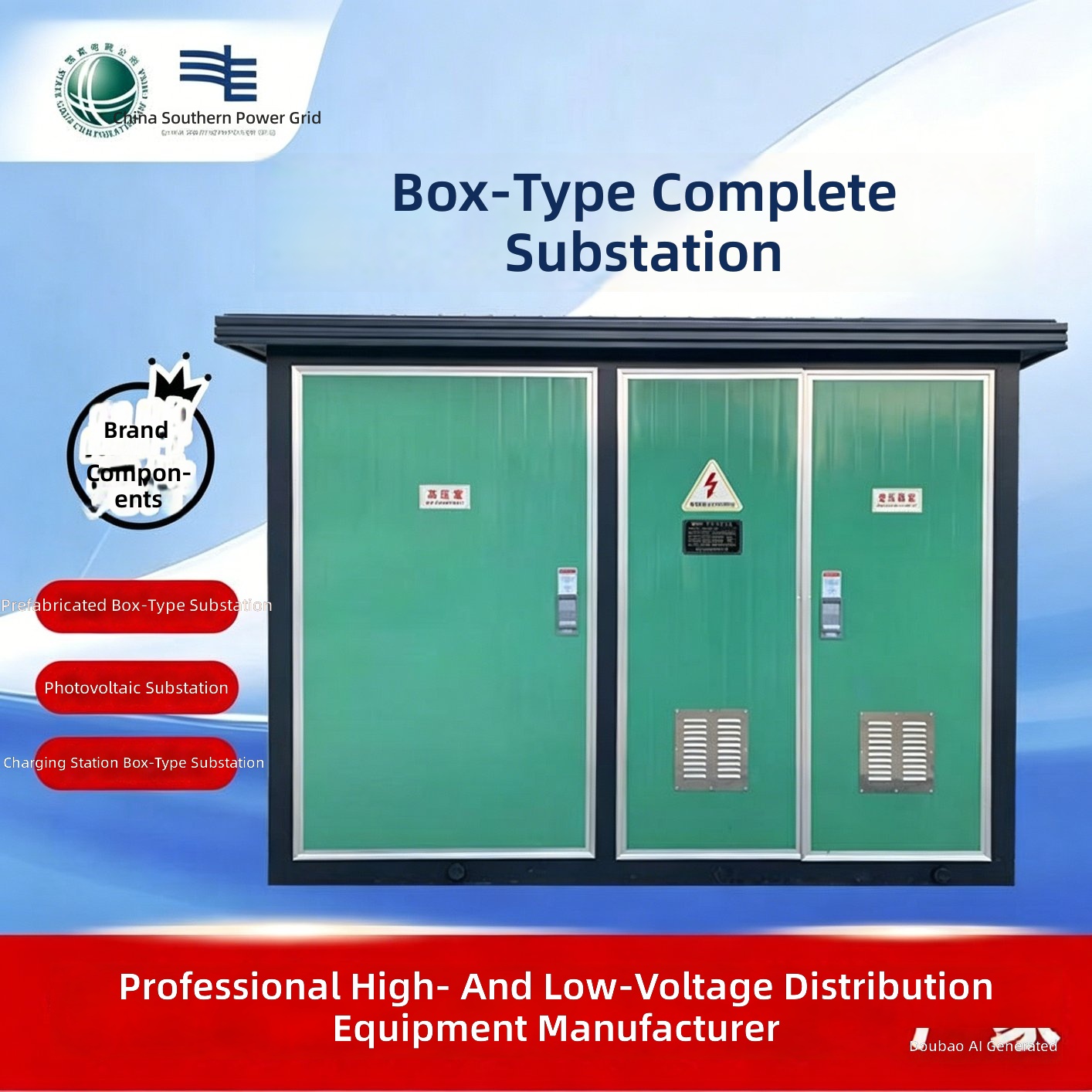

Sanlita’s 800/630KVA prefabricated box-type substation is a complete outdoor mobile power distribution solution, designed for industrial, commercial, and utility applications. This European-style substation integrates a high-voltage switchgear, transformer, and low-voltage distribution panel in a weatherproof enclosure, ensuring safe and efficient power conversion and distribution. Ideal for temporary or permanent installations, it supports rapid deployment and easy relocation.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Power | 800 KVA / 630 KVA (optional) |
| Type | Prefabricated, European-style box substation |
| Installation | Outdoor, ground-mounted, mobile |
| Enclosure Protection | IP54 (weatherproof, dustproof) |
| High Voltage | 12kV / 24kV (customizable) |
| Low Voltage | 400V / 690V (customizable) |
| Transformer | Oil-immersed or dry-type (optional) |
| Cooling Method | ONAN (natural air/oil cooling) |
| Standards | IEC 60076, GB/T 17467 |
| Dimensions (LxWxH) | Customizable per customer requirements |
| Weight | Approx. 3000-5000 kg (depending on configuration) |
Why Choose Sanlita
As a leading Chinese manufacturer, Sanlita offers unmatched factory-direct pricing and strict quality control. Our 800/630KVA substations are built with premium materials, tested for reliability, and backed by years of export experience. We provide OEM/ODM services, fast delivery, and comprehensive after-sales support, ensuring your project runs smoothly from start to finish.
FAQ
Q: What is the typical lead time for this substation?
A: Standard lead time is 15-25 working days after order confirmation, depending on customization level.
Q: Can the substation be used for solar farm applications?
A: Yes, it is suitable for solar energy systems as a step-up transformer and distribution unit.
Q: Is the enclosure corrosion-resistant for coastal areas?
A: Yes, we offer optional marine-grade coating and stainless steel hardware for coastal environments.
Q: Do you provide installation manuals and technical drawings?
A: Absolutely, we supply detailed CAD drawings, wiring diagrams, and user manuals with every unit.
Q: What is the warranty period?
A: Sanlita offers a standard 2-year warranty, with extended warranty options available upon request.
