Product Overview

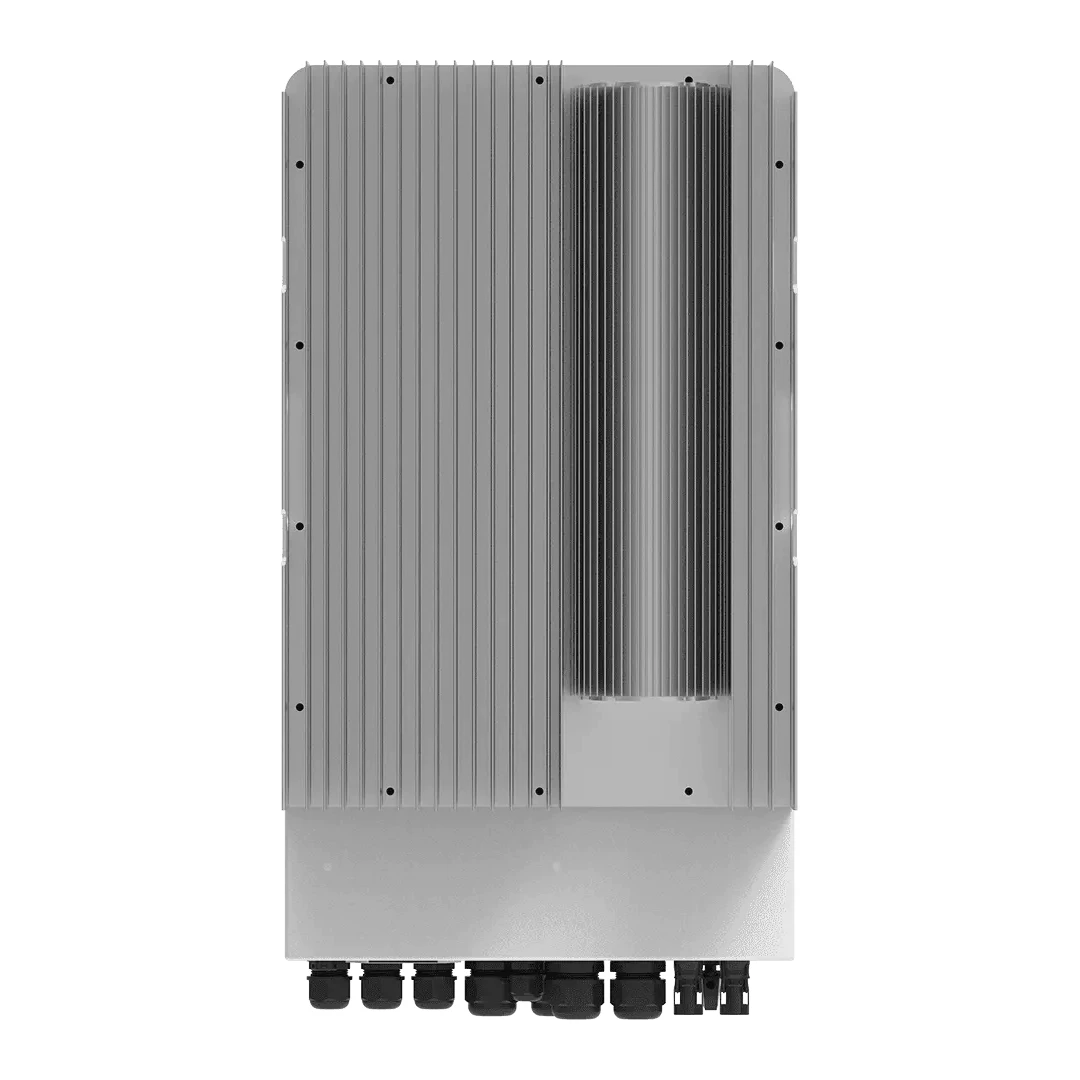

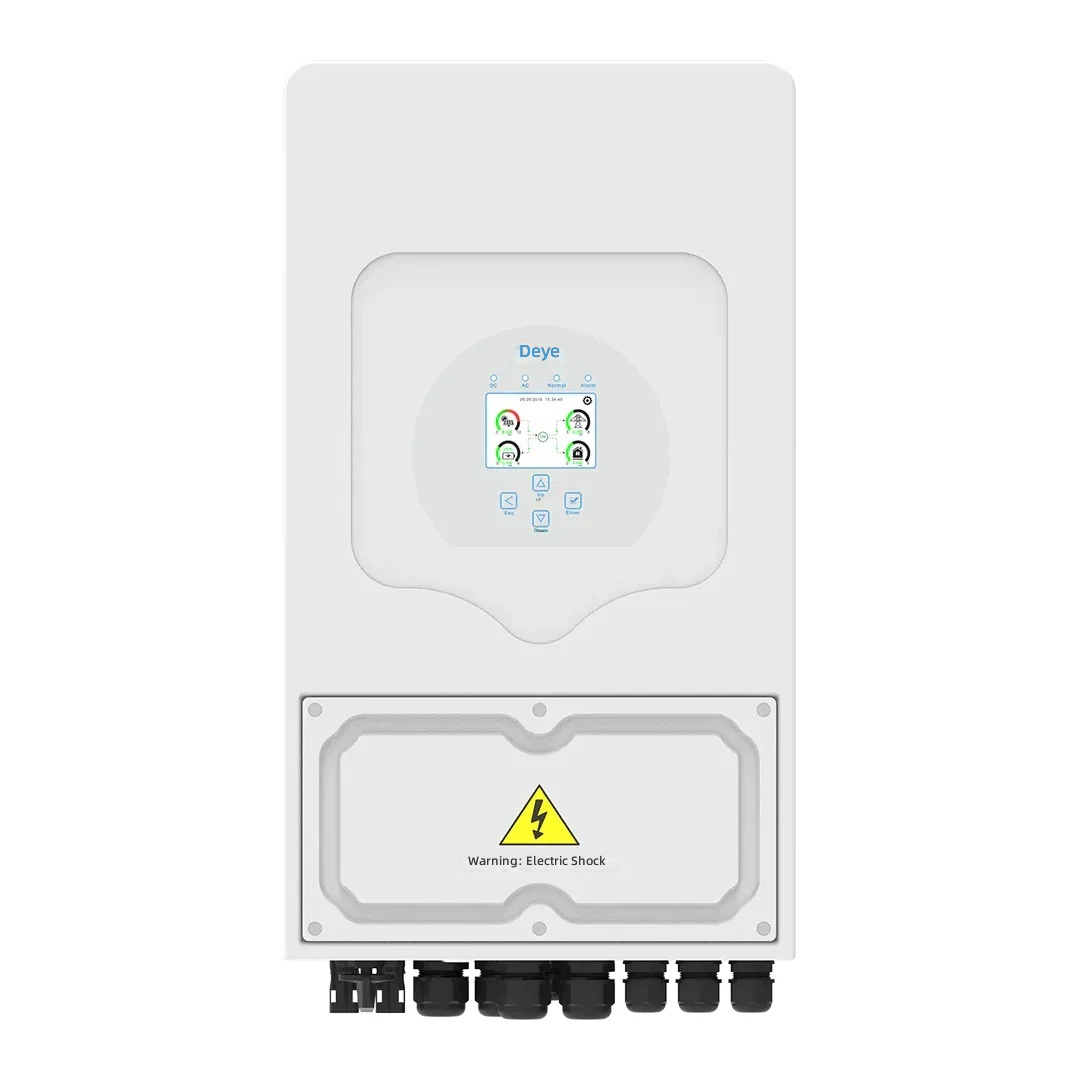

The Deye SUN-3.6K-SG05LP1-EU is a low voltage single-phase hybrid solar inverter designed for residential energy storage systems. It seamlessly integrates solar generation, battery storage, and grid interaction to maximize self-consumption and energy independence. With a compact design and advanced MPPT technology, this inverter ensures high efficiency and reliable performance for European households.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated AC Power | 3.6 kW |
| Max. PV Input Power | 5400 W |
| MPPT Voltage Range | 120-500 V |
| Battery Voltage | 48 V (Low Voltage) |
| Max. Charging/Discharging Current | 75 A |
| Efficiency | Up to 97.6% |
| Protection Class | IP65 |
| Communication | RS485, CAN, Wi-Fi (Optional) |
| Operating Temperature | -25°C to +60°C |
| Weight | 14.5 kg |
Why Choose Sanlita
Sanlita is a leading Chinese factory specializing in solar energy products. We offer the Deye SUN-3.6K-SG05LP1-EU at factory-direct prices, ensuring you get the best value without compromising quality. Our team provides comprehensive technical support, fast delivery, and flexible customization options. With years of export experience, we guarantee reliable products that meet international standards.
FAQ
Q1: Is this inverter compatible with all lithium batteries?
A1: The Deye SUN-3.6K-SG05LP1-EU supports low voltage (48V) batteries, including LiFePO4 and other lithium types. It is compatible with most major BMS protocols via CAN or RS485 communication.
Q2: Can I use this inverter without a battery?
A2: Yes, it can operate as a standard grid-tied inverter without a battery, but the hybrid functionality is optimized for energy storage.
Q3: What is the warranty period?
A3: Sanlita offers a standard 5-year warranty on this inverter, with extended warranty options available upon request.
Q4: Does it support backup power during a grid outage?
A4: Yes, it has a built-in backup function that provides uninterrupted power to critical loads during a blackout, as long as the battery is charged.
Q5: How do I monitor the system?
A5: You can monitor via the Deye app or web portal using the optional Wi-Fi module. Real-time data on solar generation, battery status, and consumption is available.
